Type MNB

Type MNB

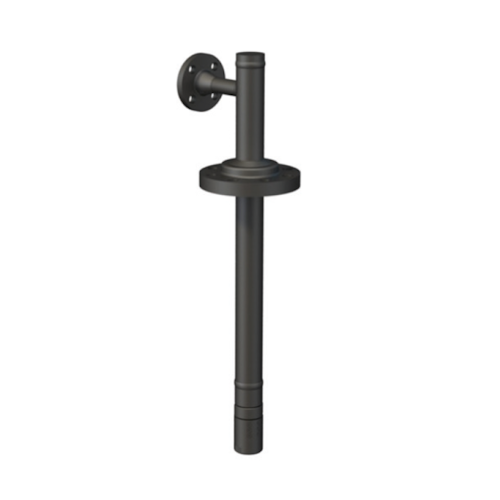

BYVAP® Steam Desuperheater Leslie

The BYVAP steam desuperheater type MNB is designed for accurate and cost effective steam temperature control. The MNB is a complete temperature control valve and cools the superheated steam by introducing water into the steam flow via a high efficiency multi nozzle design.

  • Body material: 1.7383 / A182 F22 cl3 1.0352 / A105
  • Seat material: stellite • TMS: 1060°F / 570°C
  • PMS: 2,175 PSI / 150 bar • ΔPMax: 1,740 PSI / 120 bar
  • PN250 / Class1500 • Steam flange 3” - DN80
  • Water flange: 1”/1 ½” - DN25/DN40
  • Water turndown ratio up to 16:1
  • Minimum temperature above saturation 41°F / 5°C
  • Accuracy: +/- 1,5%
  • Design code : ANSI B16.34 class 1500/2500
