Type DVX

Type DVX

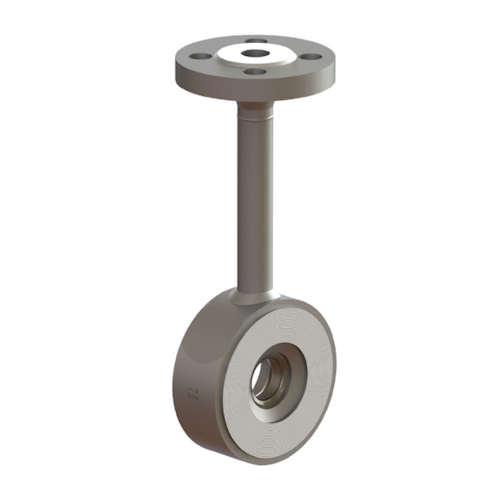

BYVAP® Steam Desuperheater Leslie

The BYVAP steam desuperheater type DVX is designed for accurate and cost effective steam temperature control. The desuperheater DVX is a complete temperature control product cooling the superheated steam by introducing water into the steam flow, because of a multi-hole nozzle design combined with a Venturi effect.

  • Body material : 1.4404 / A182 F316L
  • TMS : 930°F / 500°C
  • PN250 / Class1500
  • Water flange: ½”/ 1” / DN15/DN25
  • Minimum temperature above saturation 41°F / 5°C
  • Accuracy: +/- 1,5%
