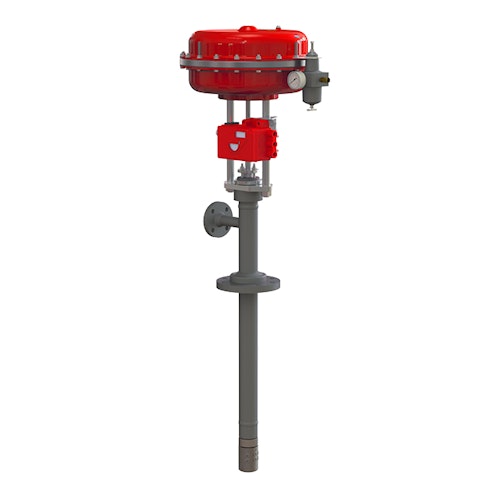

Type DMBC

Type DMBC

The BYVAP steam desuperheater type DMBC is designed for accurate and cost effective steam temperature control.The DMBC is a complete temperature control valve and cools the superheated steam by introducing water into the steam flow via a high efficiency multi nozzle design.Temperature can be controlled by a pneumatic or electric actuator.

  • Body material: 1.7383 / A182 F22 cl3 1.0352 / A105
  • Seat material: stellite
  • TMS: 1060°F / 570°C
  • PMS: 2,175 PSI / 150 bar
  • ∆PMax: 1,740 PSI / 120 bar
  • PN250 / Class1500
  • Steam flange Size 3” - DN8
  • Water flange: Size 1”/1 1⁄2” - DN25/DN40
  • Water turndown ratio up to 33:1
  • Minimum temperature above saturation 5°C
  • Accuracy: +/- 1,5%
  • Design code: ANSI B16.34 class 1500/2500
