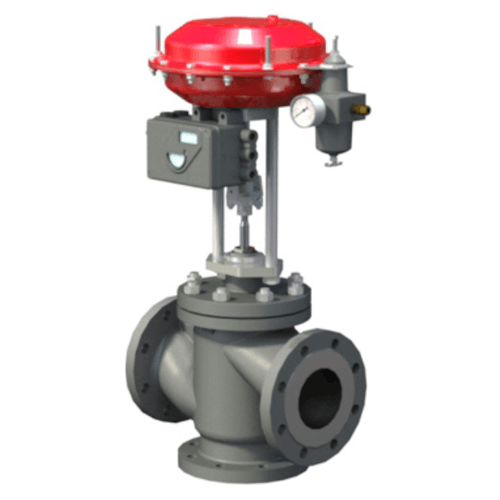

Series 7562 3 Way

Series 7562 3 Way

control valve

Three ways pneumatic control valve especially designed for a wide range of fluids like water, thermal oil, etc… These pneumatic valves offer an optimized and modular solution for industrial process.

Flanges SIZES: 1/2” to 12”
Material: Carbon Steel 1.0619 – A 216 WCB/WCC Stainless steel 1.4408 – A 351 CF8M Cast iron JL1040 / EN GJL 250 Cast iron 5.3105 / EN GJS 400-18
Flanges: ASME Class 150 and 300 Design ANSI B16-34
Perforated plug (LIN): Kvs 3.9 à 1450.
Temperature range: - 60°C à + 400°C
Packing: PTFE/Graphite.

Options:

  • Flanges with grooves
  • Soft seal plug
  • Third way facing
  • High temperature Extension
  • Graphite packing
  • Stainless steel bellows
