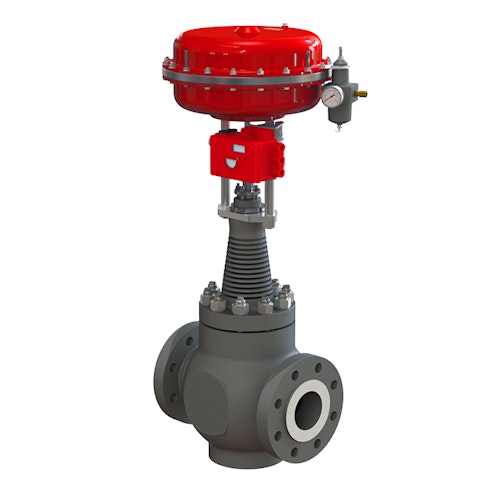

Series 6000HP

Series 6000HP

Medium and High Pressure Control Valve

Two ways pneumatic control valve especially designed for a wide range of fluids like water, thermal oil, steam, nitrogen, natural gas, etc… These pneumatic control valves offer an optimized and modular solution for industrial process.

Characteristics: Flanges ½ » to 12 » Threaded 1" to 4” Welded -BW: 1” to 12” Welded -SW: 1 » to 4 »
Temperature range: - 60°C to + 560°C
Materials: Carbon Steel 1.0619 – A 216 WCB/WCC Carbon Steel 1.6220 – A 352 LCB Carbon Steel 1.7357 – A 217 WC6 Carbon Steel 1.7379 – A 217 C12 A Stainless steel 1.4408 – A 351 CF8M Stainless steel 1.6982

  • Flanges PN63, 100, 160, 250 -  Class 600, 900, 1500
  • Plug / Parabolic or perforated plug
  • Kvs 0,4 à / to 1300
  • Packing : Graphite
  • Turndown 30 up to seat 15 and 50 after

Options:

  • Perforated plug
  • Stellited seat/plug
  • Linear characteristic
  • Piloted plug
  • Actuator
  • Pneumatic or electric actuators

Features:

  • 6000 control valves are designed and built in France ensure you an excellent reliability related to exceptional performance
  • Made at
    Leslie
  • Available as
    Leslie
