RUBY
Triple Offset Control Butterfly
The DuEx Control Valve is a double eccentric rotary control segmented ball valve that thanks to its features allows for isolation or control from one single valve design with high Cv characteristics. Leslie Controls has designed two DuEx versions for control: one with a characterized shape in the C-Ball and the other with a V-Shape Seat in different angles.
These valves are designed for those applications where you require good control in openings up to 40%, and where you need to have capacity of a full bore ball valve to handle large lows with low DP.
Size: 1/2” to 24”
Pressure: 150 to 2500

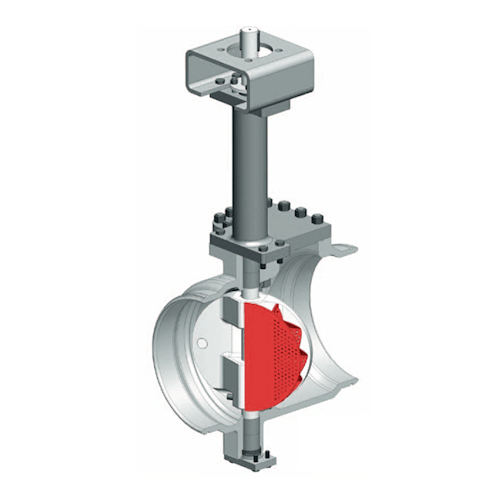

The Leslie Control RUBY© valve is a triple offset butterfly control valve, specifically designed for those applications where high capacity valves at large openings is required, and good control is required especially in small openings. Our innovative design allows to do excellent control up to 40% opening.
Size: 6” to 60” Larger sizes available on special order
Rating: 150 to 900
Temperature: - 196C / +815C
A large number of materials is available on demand
- High capacity in noise and cavitation reduction
- Modified equal-percentage inherent characteristic
- Linear inherent characteristic if combined with perforated plates
- High FL, Xt values
- Noise and cavitation control up to 40% travel
- High Capacity at Full Open
- Balanced Torque Design
- Noise and cavitation control up to 100% travel through downstream cartridge
- High Capacity at Full Open
- Possible retrofitting
Temperature: -196C / +585C
A large range of materials is available on demand
- Double eccentric: near zero friction seating, reducing torque and wear
- Quarter turn with integrated actuator, pneumatic or electric: much simpler and effective automation vs rising stem valves
- Inherently cavity free through a single seated design means no relieving device is required
- Mechanically torque seated and springless design with fewer parts than traditional trunnion BV ofer lower operational costs and easier, less frequent maintenance
- Made atLeslie
- Available asLeslie
